API Gateway for Enterprise Claude Code

API Gateway for Enterprise Claude Code

Audience: Platform engineers and DevOps teams deploying Claude Code across an organization.

Scope: Setting up a proxy layer between Claude Code clients and Anthropic’s API to centralize cost control, budget enforcement, and usage visibility. For individual session cost estimation, see observability.md. For MCP governance, see enterprise-governance.md §3.

---

TL;DR

Problem	Gateway solution
No per-team cost breakdown	Virtual keys with team metadata, aggregated in dashboards
Developers can call any model	Model allowlists per key (unapproved calls return 403)
Runaway costs from agents	Budget cap per key, monthly reset, returns 429 when hit
No central audit log	Every request/response logged with key alias, team, tokens

The approach: Set ANTHROPIC_API_URL on each developer machine to point to your gateway instead of api.anthropic.com. The gateway forwards requests to Anthropic, adds logging and budget enforcement, and issues virtual keys so your real Anthropic key never touches developer machines.

---

1. Why a Gateway Layer

Claude Code calls Anthropic’s API directly using whatever key is in ANTHROPIC_API_KEY. Without a proxy layer:

• You have no per-team or per-project cost breakdown until the monthly invoice
• Any developer with a key can call any model, including the most expensive ones
• Budget limits depend entirely on each person’s discipline
• There is no org-level audit log of what was built with AI assistance

A gateway sits between all Claude Code instances and Anthropic. It issues virtual keys to developers (scoped to a team or project), keeps the real Anthropic key server-side, and enforces policies on every request before forwarding.

---

2. LiteLLM Gateway

LiteLLM is the most widely used open-source LLM proxy for enterprise deployments. It supports Anthropic natively, issues virtual keys, enforces budgets, and exposes Prometheus metrics for Grafana dashboards.

2.1 Installation

pip install 'litellm[proxy]'

# Docker is recommended for production
docker pull ghcr.io/berriai/litellm:main-latest

2.2 Configuration

Create litellm_config.yaml to route to Anthropic:

model_list:
  - model_name: claude-haiku-4-5
    litellm_params:
      model: anthropic/claude-haiku-4-5-20251001
      api_key: os.environ/ANTHROPIC_API_KEY

  - model_name: claude-sonnet-4-6
    litellm_params:
      model: anthropic/claude-sonnet-4-6
      api_key: os.environ/ANTHROPIC_API_KEY

  - model_name: claude-opus-4-8
    litellm_params:
      model: anthropic/claude-opus-4-8
      api_key: os.environ/ANTHROPIC_API_KEY

general_settings:
  master_key: os.environ/LITELLM_MASTER_KEY
  database_url: os.environ/DATABASE_URL  # PostgreSQL required for persistent keys

litellm_settings:
  drop_params: true  # Ignore unknown params silently

Start the proxy:

litellm --config litellm_config.yaml --port 4000

2.3 Connecting Claude Code

Set these two environment variables on each developer machine (distribute via your secrets manager, dotfile repo, or onboarding script):

# Point Claude Code to your LiteLLM instance
# Note the /anthropic path suffix — required for Anthropic Messages API format
export ANTHROPIC_API_URL=http://your-litellm-host:4000/anthropic

# Developer uses a virtual key, not the real Anthropic key
export ANTHROPIC_API_KEY=sk-litellm-team-backend-abc123

Claude Code does not require any other change. It reads ANTHROPIC_API_URL and uses it transparently. The /anthropic path suffix is required: LiteLLM exposes the Anthropic Messages API format at /anthropic/v1/messages, separate from its OpenAI-compatible endpoint at /v1/chat/completions.

---

3. Virtual Keys and Team Budgets

Create virtual keys through the LiteLLM management API. Each key maps to a team or project and carries an optional monthly budget cap.

# Backend team: Sonnet + Haiku only, $50/month budget
curl -X POST http://localhost:4000/key/generate \
  -H "Authorization: Bearer $LITELLM_MASTER_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "key_alias": "team-backend",
    "team_id": "team-backend",
    "max_budget": 50,
    "budget_duration": "monthly",
    "models": ["claude-haiku-4-5", "claude-sonnet-4-6"],
    "metadata": {"team": "backend", "project": "api-v2"}
  }'

# Leads: all models, $300/month
curl -X POST http://localhost:4000/key/generate \
  -H "Authorization: Bearer $LITELLM_MASTER_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "key_alias": "lead-full-access",
    "team_id": "leads",
    "max_budget": 300,
    "budget_duration": "monthly",
    "models": ["claude-haiku-4-5", "claude-sonnet-4-6", "claude-opus-4-8"]
  }'

When a budget is hit, Claude Code receives a 429 BudgetExceededError. The key automatically resets at the start of the next budget cycle.

# Check current spend for a key
curl http://localhost:4000/key/info?key=sk-litellm-team-backend-abc123 \
  -H "Authorization: Bearer $LITELLM_MASTER_KEY"

---

4. Model Allowlists

Calls to models not in a key’s models list return a 403 ModelNotAllowedError before the request reaches Anthropic. This enforces your model approval policy at the network layer regardless of what a developer puts in their Claude Code config.

A three-tier structure that matches most org needs:

Tier	Models allowed	Monthly budget	For
Developer default	Haiku, Sonnet	$30	All engineers
Project elevated	Haiku, Sonnet	$100	Active sprint work
Lead/Architect	All models	$300	Tech leads, architects

---

5. Usage Dashboards

LiteLLM exposes Prometheus metrics at /metrics. Add a scrape config in Prometheus:

scrape_configs:
  - job_name: litellm
    static_configs:
      - targets: ['litellm-host:4000']
    metrics_path: /metrics

Key metrics for Grafana panels:

# Total requests by team and model
litellm_requests_total{model, team_id, key_alias}

# Cost by team (USD)
litellm_spend_total{model, team_id}

# Token counts split by input/output/cache
litellm_tokens_total{token_type, model, team_id}

# Error rate by type (budget exceeded, model not allowed, upstream timeout)
litellm_failed_requests_total{model, error_type}

LiteLLM also ships a basic UI at /ui (enable with LITELLM_UI_USERNAME and LITELLM_UI_PASSWORD env vars) for quick cost breakdown views without needing a full Grafana setup.

---

6. OpenTelemetry Integration

LiteLLM supports native OTel export, which integrates with the observability stack covered in observability.md §10:

litellm_settings:
  otel_endpoint: http://otel-collector:4317
  otel_headers:
    Authorization: Bearer ${OTEL_BEARER_TOKEN}

Each request generates a span with attributes including litellm.model, litellm.team_id, litellm.key_alias, litellm.total_tokens, and litellm.spend. These flow into your existing traces alongside application-level spans.

---

7. Production Deployment

Run LiteLLM behind a TLS-terminating reverse proxy (nginx or Caddy). A minimal Docker Compose setup:

services:
  litellm:
    image: ghcr.io/berriai/litellm:main-latest
    ports:
      - "4000:4000"
    environment:
      ANTHROPIC_API_KEY: ${ANTHROPIC_API_KEY}
      LITELLM_MASTER_KEY: ${LITELLM_MASTER_KEY}
      DATABASE_URL: postgresql://user:pass@db:5432/litellm
    volumes:
      - ./litellm_config.yaml:/app/config.yaml
    command: ["--config", "/app/config.yaml", "--port", "4000"]
    depends_on:
      - db

  db:
    image: postgres:16
    environment:
      POSTGRES_DB: litellm
      POSTGRES_USER: user
      POSTGRES_PASSWORD: pass
    volumes:
      - postgres_data:/var/lib/postgresql/data

volumes:
  postgres_data:

PostgreSQL is required for persistent key management and usage history. Without it, virtual keys and budget state reset on container restart.

For high availability, run two LiteLLM instances behind a load balancer. Both share the same PostgreSQL database for consistent key state.

---

8. Portkey as a Managed Alternative

Portkey offers the same gateway capabilities as a hosted service, with no infrastructure to manage. Free tier covers small teams (up to 10K requests/month).

export ANTHROPIC_API_URL=https://api.portkey.ai/anthropic
export ANTHROPIC_API_KEY=your-real-anthropic-key
export PORTKEY_API_KEY=your-portkey-api-key

Portkey also supports x-portkey-virtual-key headers for routing, logging, and fallback configs. The trade-off: your request metadata leaves your infrastructure and goes to Portkey’s servers. Review their data processing terms if you have compliance requirements.

---

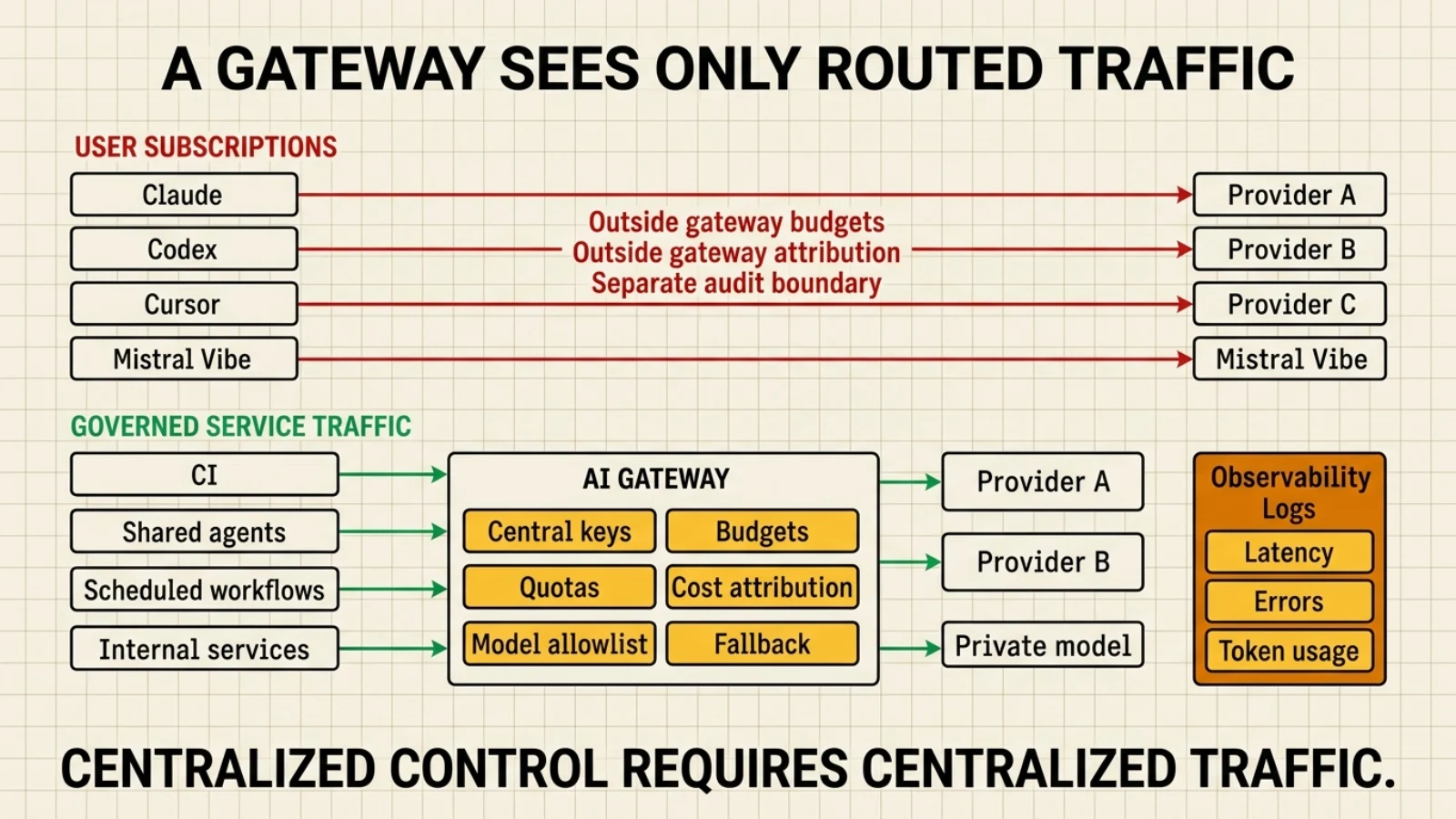

9. What the Gateway Does Not Cover

The gateway controls what reaches Anthropic’s API. It does not address:

• What files Claude Code reads on the developer’s machine (use permissions.deny in settings.json)
• Which MCP servers are active locally (see enterprise-governance.md §3)
• Code quality of AI output (use PR review gates)
• Session-level audit trails showing which files were modified (see ai-traceability.md)

---

See Also

• observability.md for individual session logging and cost estimation without a proxy
• enterprise-governance.md for MCP governance and guardrail tiers
• ai-traceability.md for AI attribution in commits and PR audit trails
• LiteLLM proxy documentation
• Portkey documentation
